M7000944 Internal Mounting Plate Kit – C336
Scroll

M7000944

Internal Mounting Plate Kit – C336

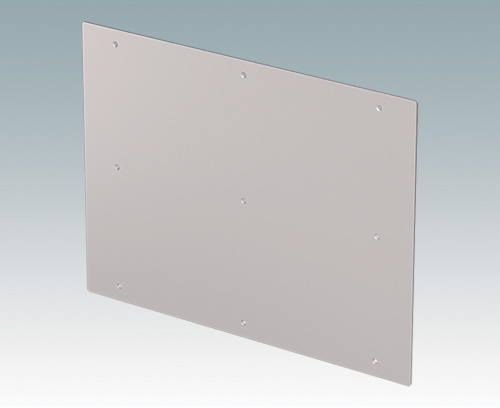

Internal mounting plate kit for enclosure size C336. For mounting heavy PCB assemblies, power supplies etc. Fits to the M3 mounting pillars in the rear panel.

Supply

Mounting plate, M3 x 8 (x9)
