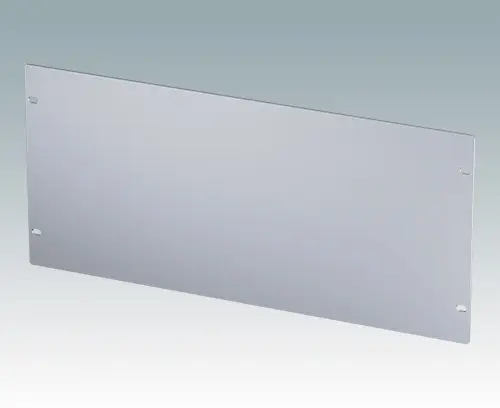

M6019050 Front panel 5Ux19

M6019050

Front panel 5Ux19"

Anodised aluminium front panel according to 19" rack standard DIN 41494 and IEC 297-1.

Supply

Panel

  • To be used for
M6619544 TECHNOMET 19" 5Ux400mm

M6619544

TECHNOMET 19" 5Ux400mm

Modern and highly attractive 19" instrument enclosure for mounting 5U subracks (84HP), chassis or front panels. Conforms to DIN 41494 & IEC 297-1. Stylish front and rear bezels are fitted to the aluminium case body. Clip-on trims at the front and rear hide the assembly screws giving a very professional appearance. All case panels fitted with M4 threaded pillars for earth connection.

The case is supplied with a rear panel, two ABS side handles and four ABS non-slip feet. Ventilation slots are provided in the base and rear panel. Internal chassis runners support the 19" equipment.

Version RC195 with side handles

Supply Front bezel (x2), top cover, base and chassis assembly, rear panel, front trim (x2), rear trim (x2), trim clips (x8), ABS side handle (x2), ABS feet (x4), non-slip feet inserts (x4), M3 x 6 mm (x2), M3 x 8 mm (x12), M4 x 16 mm (x8), M4 x 12 mm (x6), M6 caged nuts (x4), M6 x 16 mm (x4) and grey plastic cup washer (x4). Supplied assembled.

Close

M6619544

TECHNOMET 19" 5Ux400mm
product added to your basket
Aluminium
Anthracite RAL 7016
244.5x539x400mm
M6619545 TECHNOMET 19" 5Ux400mm

M6619545

TECHNOMET 19" 5Ux400mm

Modern and highly attractive 19" instrument enclosure for mounting 5U subracks (84HP), chassis or front panels. Conforms to DIN 41494 & IEC 297-1. Stylish front and rear bezels are fitted to the aluminium case body. Clip-on trims at the front and rear hide the assembly screws giving a very professional appearance. All case panels fitted with M4 threaded pillars for earth connection.

The case is supplied with a rear panel, two ABS side handles and four ABS non-slip feet. Ventilation slots are provided in the base and rear panel. Internal chassis runners support the 19" equipment.

Version RC195 with side handles

Supply Front bezel (x2), top cover, base and chassis assembly, rear panel, front trim (x2), rear trim (x2), trim clips (x8), ABS side handle (x2), ABS feet (x4), non-slip feet inserts (x4), M3 x 6 mm (x2), M3 x 8 mm (x12), M4 x 16 mm (x8), M4 x 12 mm (x6), M6 caged nuts (x4), M6 x 16 mm (x4) and grey plastic cup washer (x4). Supplied assembled.

Close

M6619545

TECHNOMET 19" 5Ux400mm
product added to your basket
Aluminium
Light grey RAL 7035
244.5x539x400mm
  • Technical Data
  • Drawings / Info
  • Purchasing Data
Material
Colour
Matt anodised
Standards
IEC 60297-3
REACH compliant
DIN 41494
RoHS compliant
Width
482.6 mm
Height
3 mm
Depth
221.45 mm
Height Unit
5 U

Catalogue Pages

Drawings

3D Models

Weight/1 part
1.03 kg
Customs tariff number
(METCASE product)
76061293
Country of manufacture
U.K.
