UNIDESK enclosures now in more colours

Unidesk desktop enclosures

August 2012

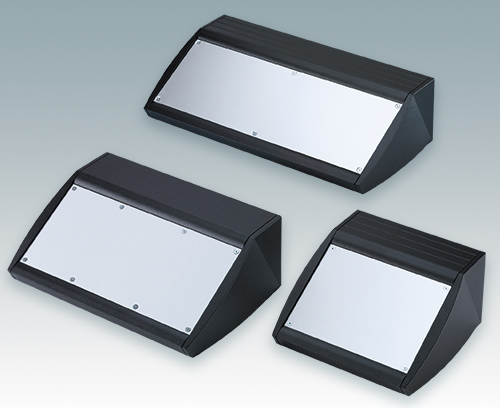

Modern sloping front enclosures now also in black

METCASE has extended its UNIDESK range of aluminium terminal enclosures with three new models in black. These ergonomic sloping front enclosures have been designed for desktop and wall mounted electronic systems.

Typical applications will include point-of-sale terminals, medical and wellness equipment, machine or robotic controllers, and test and measurement instruments.   The UNIDESK enclosures are offered in three standard sizes with external dimensions from 200 x 200 x 102 mm to 400 x 200 x 102 mm. The assembly consists of two diecast aluminium end panels fitted to the front and rear extrusion profiles. The cases are now available painted in black, RAL 9005 or light grey, RAL 7035.

The base panel is removable and includes mounting points for fitting M3 PCB screw pillars. Four non-slip rubber feet are included. An accessory wall mounting kit is also offered. This allows the enclosures to be mounted in three orientations to suit different positions on a wall or machine housing.

Anodised aluminium front panels are offered as accessories, and are suitable for mounting membrane keypads, push-button controls and display modules. The cases are provided with both M3 and Torx® T10 stainless steel fixing screws.

The UNIDESK enclosures can be sealed to IP 54 protection class by using the four ‘L’ shaped foam gaskets supplied for the front and base panel apertures.

METCASE can also supply these enclosures fully customised to suit customer requirements. The cases can also be manufactured in different widths and painted in other colours.

View UNIDESK range >>
