TECHNOFEET – New universal feet kits for enclosures

Technofeet Enclosures Feet

December 2015

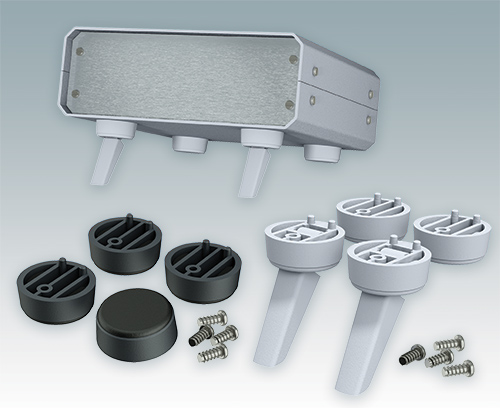

Stylish and modern round feet with or without tilt legs

METCASE has added new TECHNOFEET universal case feet to its wide range of accessories for electronic enclosures.

These stylish and modern feet can be specified with or without tilt legs, making them perfect for laboratory equipment or other desktop instrument enclosures which require a choice of viewing angles.

TECHNOFEET can be fitted to any type of plastic or metal enclosure with a wall thickness of up to 3 mm with the standard screws supplied. Longer screws can be supplied for larger wall thicknesses on demand.

The feet are easy to install, requiring just three holes in the enclosure panel. METCASE supplies drilling details with each kit.

Two standard kits are available, each with four feet. Kit 1 includes four foot bodies, push-in anti-skid pads and self-tapping screws. Kit 2 also includes two tilt legs with 120º rotation.

Each foot is sized ø30 x 12 mm high. The foot bodies are moulded in ABS (UL 94 HB) while the anti-skid pads are soft touch TPE for maximum grip. Three standard colours are offered: anthracite (RAL 7016), light grey (RAL 7035) and black (RAL 9005).

TECHNOFEET are available in a range of six kits: M6420104, feet kit in anthracite; M6420204, feet kit with tilt legs in anthracite; M6420105, feet kit in light grey; M6420205, feet kit with tilt legs in light grey; M6420109, feet kit in black and M6420209 feet kit with tilt legs in black. METCASE offers free samples for evaluation.

METCASE expects the range to be extremely popular, based on the success of its existing CASE FEET which are also available with or without tilt legs.

View TECHNOFEET range >>
