Custom supersize Combimet 19" enclosures

AltText

October 2016

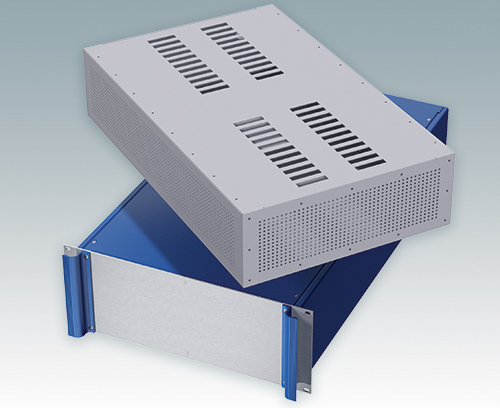

Extra large enclosures made to customer requirements

METCASE is manufacturing its bestselling COMBIMET 19” rack mount enclosures in ever deeper and larger custom sizes.

Latest custom orders for COMBIMET have included 800 mm deep (1U to 8U) versions that offer significantly more space than the 265 mm and 365 mm deep standard cases.

METCASE has also custom manufactured a non-rack (non-19”) version of COMBIMET – 500 mm x 800 mm x 200 mm – for an application that involved ceiling-mounted electronics. Thus demonstrating how versatile this enclosure design is.

Standard COMBIMET is a 19” rack mounted enclosure for networking and communications, industrial control, sound and studio systems and laboratory instrumentation.

It is a bestseller for METCASE, prompting the launch of open top and other versions.

All COMBIMET enclosures offer complete access to the PCBs: the top, base and rear panels are removable. The top and base can be specified as either vented or unvented.

Features include ergonomic front panel handles plus mounting holes for PCBs and chassis. There are M4 earth studs on all components for electrical continuity.

COMBIMET aluminium enclosures are available as standard from 1U to 6U in either light grey (RAL 7035) or black (RAL 9005). Cases are supplied fully assembled.

Accessories include a PCB mounting kit; 19” mounting kits in black or light grey and two aluminium mounting plates (335 x 230 x 1.5 mm and 335 x 330 x 1.5 mm).

Customising options include custom sizes and front panels; CNC punching, folding, milling, drilling and tapping; fixings and inserts; painting and finishing, digital printing of legends and logos; bespoke enclosures.

View COMBIMET 19" range >>
