M0000801 Obround Cutout

M0000801

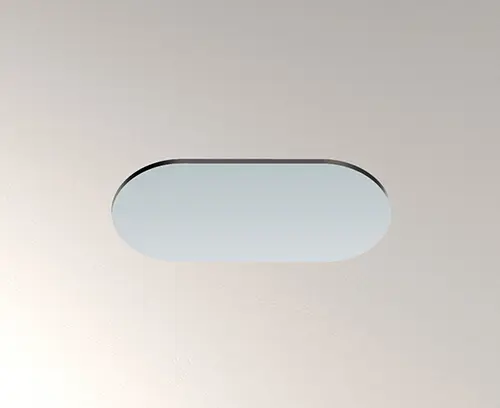

Obround Cutout

Standard punches for sheet metal parts, such as enclosure front panels, rear panels, covers, tops, base panels etc.

Your size not here? Custom punch sizes can be obtained to suit your specific requirements. Talk to our sales team for more information.

Dim A (mm) Dim B (mm)
3.5 1.6
5.0 3 | 3.3
5.2 3.2
5.5 3.2
6 3 | 4.4 | 4.5
6.5 3.5
6.6 4.4
7 4
7.16 3.16
7.62 4.5
8. 2.5 | 4.5
8.2 3.8
8.4 4
9.5 7.5
9.65 4.82
9.7 6.7
10 1.2 | 1.8 | 4 | 5 | 5.13 | 6.5 | 7
10.5 4.5 | 7 | 7.5
11 5.5 | 6
11.9 6.4
12 4
12.6 6.7
12.7 4.5 | 5 | 5.08
13 1.5
13.5 9
14 9
15 3.5 | 8
15.2 3.8
15.5 3.5
16 2 | 6
17 1.8 | 8
18 3.2
20 5
22 10
23 4
24 10
25 2 | 2.5 | 3 | 5 | 6 | 6.5 | 7.1 | 8 | 11 | 15
25.4 4.78 | 5 | 6.35
27 6 | 6.5
28 3
30 7
34.12 6.35
38 2.5
40 3
46 3
46.5 6
50 7
57 4
75 30
