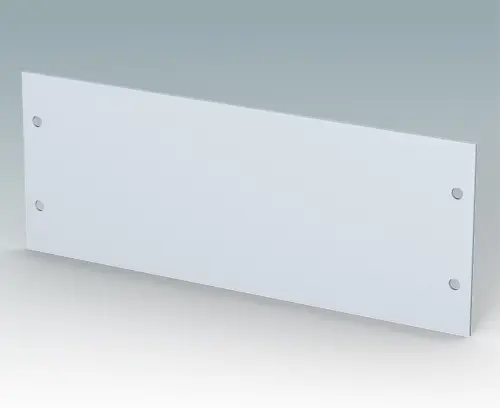

M5100565 Front/rear panel PN (size 6 & 8)

M5100565

Front/rear panel PN (size 6 & 8)

Painted aluminium front/rear panel for MINIMET size 6 and 8 cases

Supply

Painted panel (panel fixings supplied with case).

  • To be used for

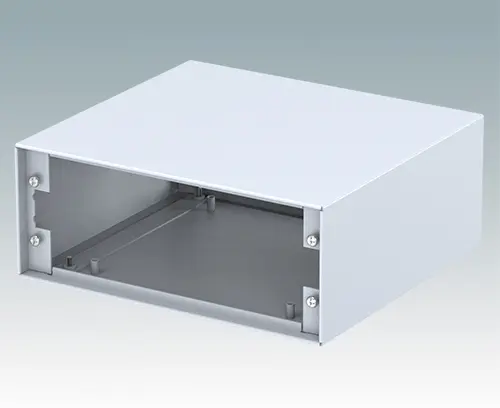

M5117125 MINIMET 6

M5117125

MINIMET 6 Modern instrument case for small desktop and portable electronics. Folded aluminium top and base covers are assembled by hidden fixing screws on the underside. Front and rear apertures are recessed by 8 mm and 14 mm at the opposite ends. Order front and rear panels separately.

Supply Top cover, base panel, 4 self-adhesive non-slip feet and fixing screws. Supplied assembled.

Close

M5117125

MINIMET 6
product added to your list
Aluminium
Light grey RAL 7035
174.5x160x70mm

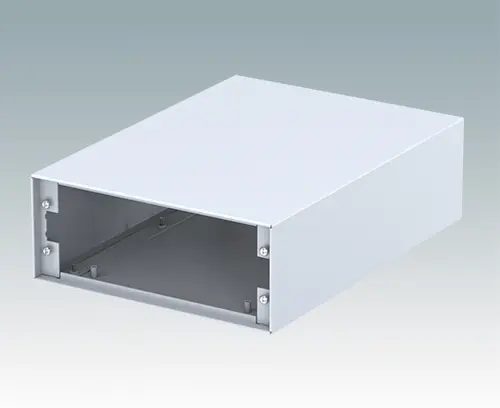

M5117225 MINIMET 8

M5117225

MINIMET 8 Modern instrument case for small desktop and portable electronics. Folded aluminium top and base covers are assembled by hidden fixing screws on the underside. Front and rear apertures are recessed by 8 mm and 14 mm at the opposite ends. Order front and rear panels separately.

Supply Top cover, base panel, 4 self-adhesive non-slip feet and fixing screws. Supplied assembled.

Close

M5117225

MINIMET 8
product added to your list
Aluminium
Light grey RAL 7035
174.5x240x70mm
  • Technical Data
  • Drawings / Info
  • Purchasing Data
Material
Colour
Light grey RAL 7035
Standards
REACH compliant
RoHS compliant
Width
169.5 mm
Height
1.5 mm
Depth
65.1 mm

Catalogue Pages

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
0.05 kg
Customs tariff number
(METCASE product)
76061292
Country of manufacture
U.K.
