M6610455 TECHNOMET 10.5

M6610455

TECHNOMET 10.5" 4Ux330mm

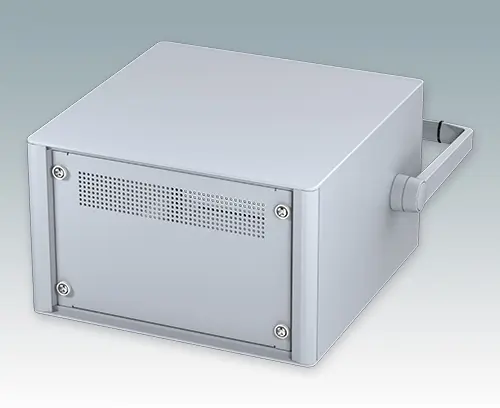

Modern and highly attractive 10.5" instrument enclosure for mounting 4U subracks (42HP), chassis or front panels. Conforms to DIN 41494 & IEC 297. Stylish front and rear bezels are fitted to the aluminium case body. Clip-on trims at the front and rear hide the assembly screws giving a very professional appearance. All case panels fitted with M4 threaded pillars for earth connection. The case is supplied with a rear panel, a tilt/swivel carry handle and four ABS non-slip feet. Ventilation slots are provided in the base and rear panel. Internal chassis runners support the 10.5" equipment.

Version

RC104H with handle/bail arm

Supply

Front bezel (x2), top cover, base and chassis assembly, rear panel, front trim (x2), rear trim (x2), trim clips (x8), carry handle kit, ABS feet (x4), non-slip feet inserts (x4), M3 x 6 mm (x2), M3 x 8 mm (x16), M4 x 16 mm (x8), M4 x 12 mm (x6), M6 caged nuts (x4), M6 x 16 mm (x4) and grey plastic cup washer (x4). Supplied assembled.

  • Components/Accessories

Accessory

M6000035 19" mounting kit

M6000035

19" mounting kit Mounting kit including all hardware for fitting a 19" rack case, subrack or front panel into a 19" rack.

Supply M6 caged nuts (x4), M6 x 16 mm screw (x4) and light grey plastic cup washer (x4).

Close

M6000035

19" mounting kit
product added to your basket
Light grey RAL 7035
M6010040 Front panel 4Ux10.5"

M6010040

Front panel 4Ux10.5" Anodised aluminium front panel according to 19" rack standard DIN 41494 and IEC 297.

Supply Front Panel

Close

M6010040

Front panel 4Ux10.5"
product added to your basket
Aluminium
Matt anodised
269.2x3x176.95mm
  • Technical Data
  • Drawings / Info
  • Purchasing Data
Material
Colour
Light grey RAL 7035
Standards
IEC 60297-3
REACH compliant
DIN 41494
RoHS compliant
Height
200 mm
Width
323 mm
Depth
330 mm
Height Unit
4 U

Catalogue Pages

Drawings

3D Models

Weight/1 part
4.5 kg
Customs tariff number
(METCASE product)
76169990
Country of manufacture
U.K.
