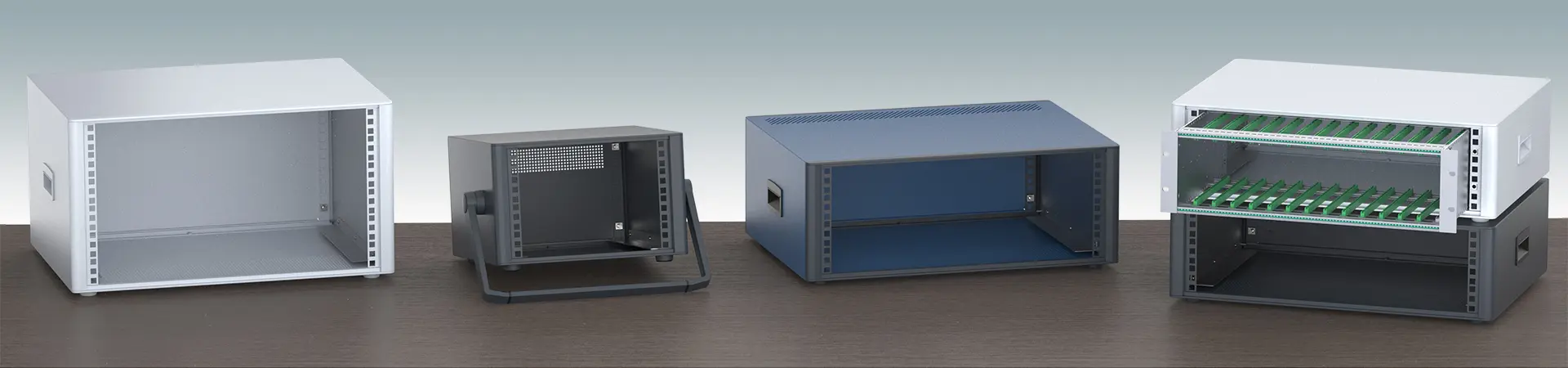

Technomet 19 inch housings

Technomet 19"

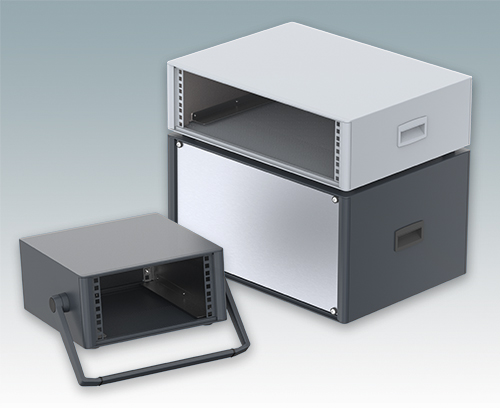

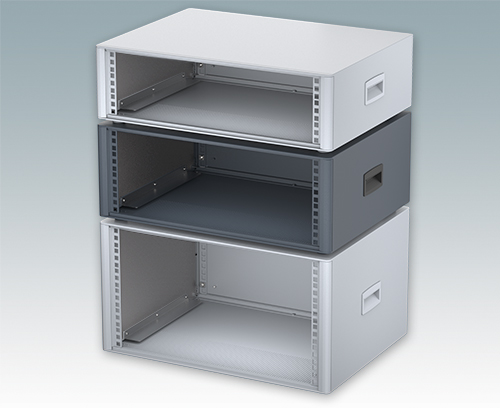

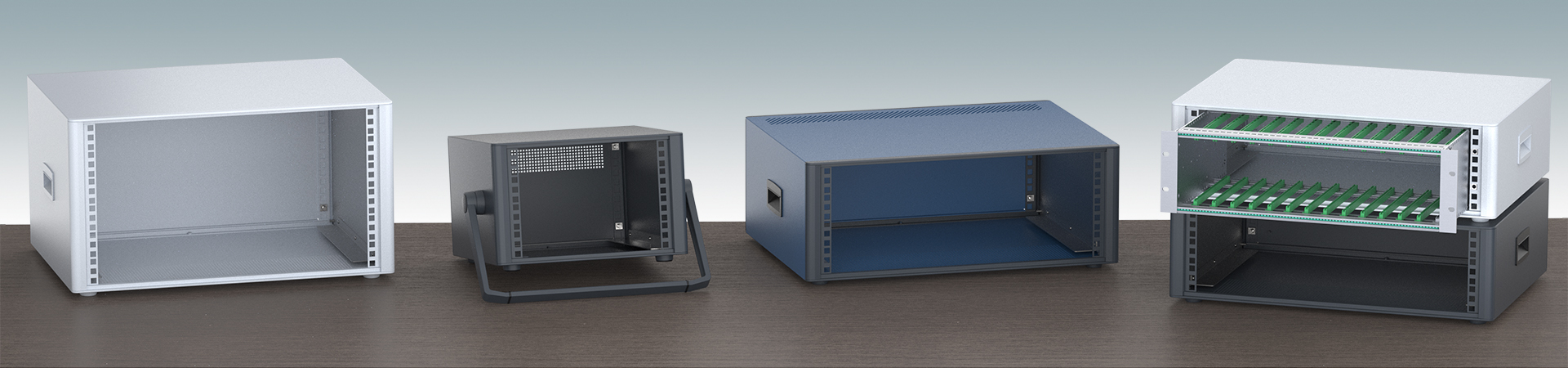

Modern Desktop Mini-Rack Enclosures to DIN 41494 and IEC 297-1

  • Cohesive design with no visible fixing screws. Robust yet lightweight aluminium construction

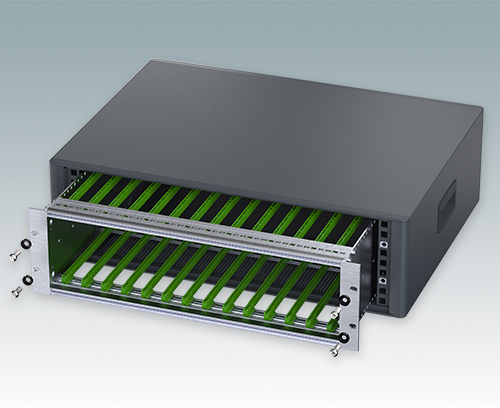

  • Designed to accept standard 19" subracks, chassis and front panels
  • Die cast bezels fit flush with the case body for a smooth appearance

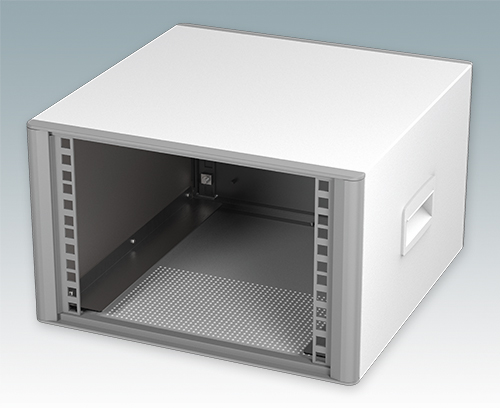

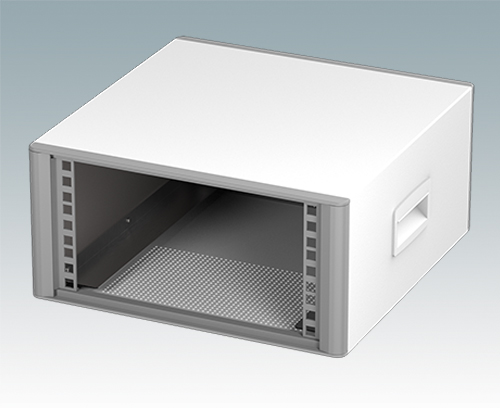

  • Recessed ABS side handles for easy carrying

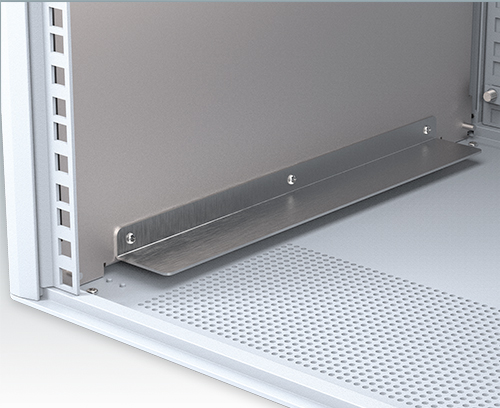

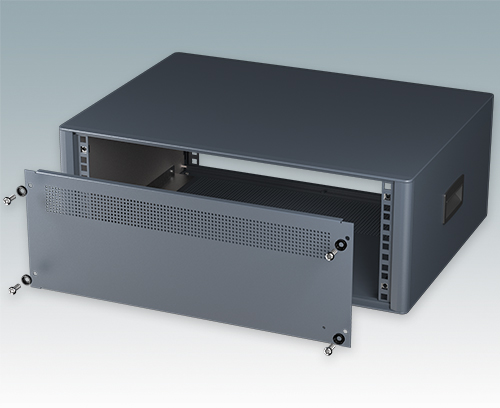

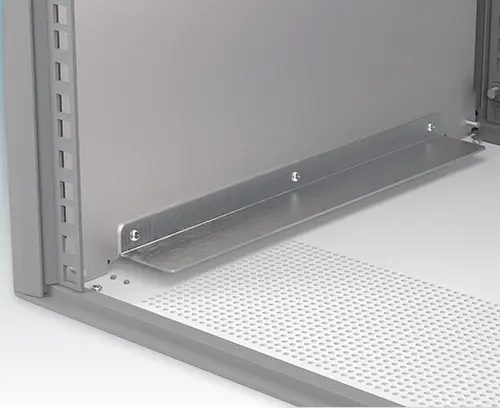

  • Removable rear panel and internal subrack/chassis support rails included

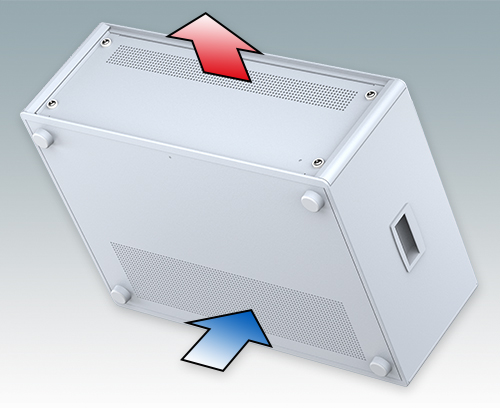

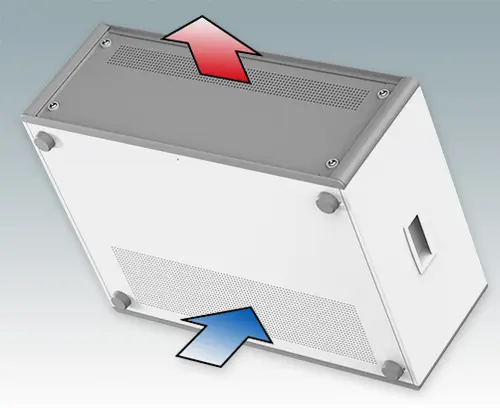

  • Ventilation holes in base and rear panel
  • All case panels fitted with M4 threaded pillars for earth connections

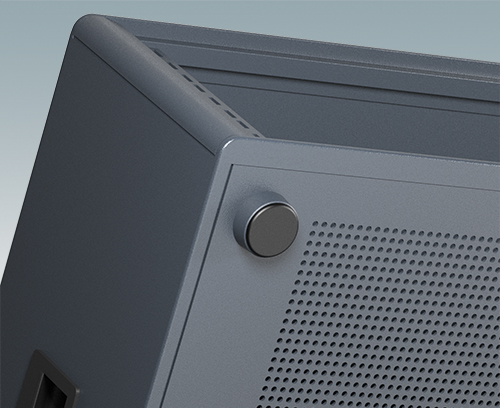

  • Moulded ABS non-slip feet included
  • Supplied fully assembled and ready to use

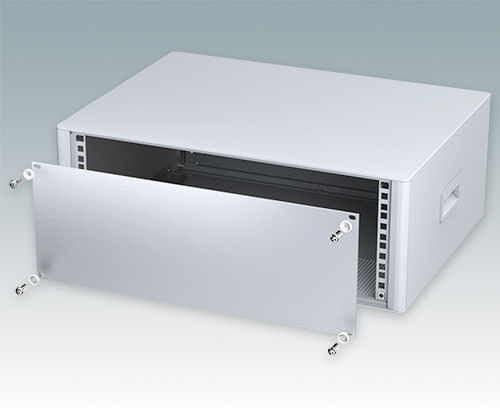

  • Accessory anodised 19" front panels available.

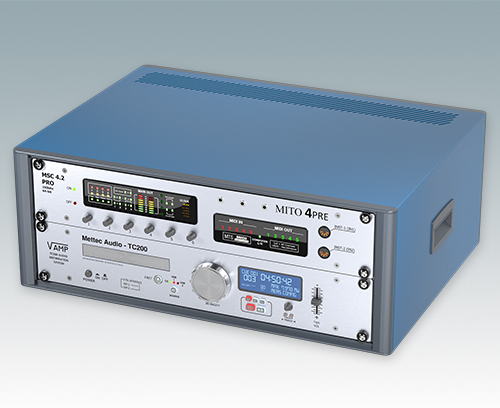

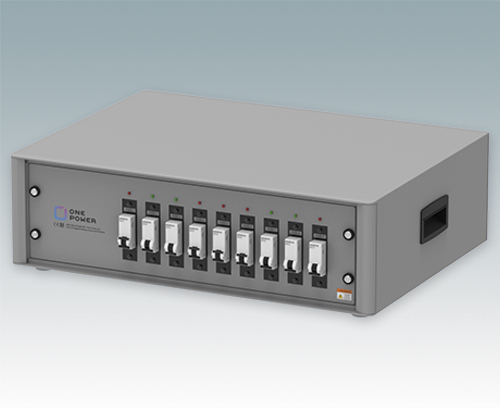

Order your own fully customised version learn more here >>

  • Video

Application fields

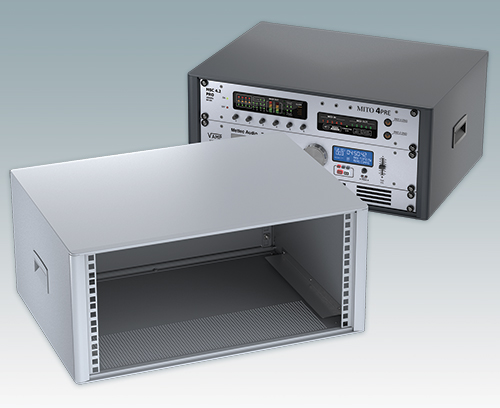

19" subrack or chassis based electronics such as test and measurement equipment, networking and communications devices, industrial computers, sound and studio systems, laboratory instruments and industrial control systems.
  • Browse Full List
  • Accessories
  • Catalogue Documents
M6619344 TECHNOMET 19" 3Ux400mm

M6619344

TECHNOMET 19" 3Ux400mm Modern and highly attractive 19" instrument enclosure for mounting 3U subracks, chassis or front panels. Conforms to DIN 41494 & IEC 297-1. Stylish front and rear bezels are fitted to the aluminium case body. Clip-on trims at the front and rear hide the assembly screws giving a very professional appearance. All case panels fitted with M4 threaded pillars for earth connection.

The case is supplied with a rear panel, two ABS side handles and four ABS non-slip feet. Ventilation slots are provided in the base and rear panel. Internal chassis runners support the 19" equipment.

Version With side handles

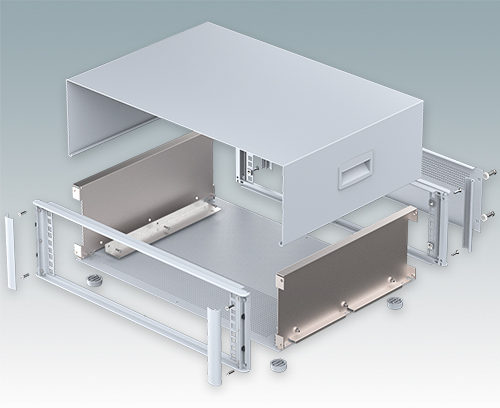

Supply Front bezel (x2), top cover, base and chassis assembly, rear panel, front trim (x2), rear trim (x2), trim clips (x8), ABS side handle (x2), ABS feet (x4), non-slip feet inserts (x4), M3 x 6 mm (x2), M3 x 8 mm (x12), M4 x 16 mm (x8), M4 x 12 mm (x6), M6 caged nuts (x4), M6 x 16 mm (x4) and black plastic cup washer (x4). Supplied assembled.

Close

M6619344

TECHNOMET 19" 3Ux400mm
product added to your list
Aluminium
Anthracite RAL 7016
155.6x540x400mm
M6619345 TECHNOMET 19'' 3Ux400mm

M6619345

TECHNOMET 19'' 3Ux400mm Modern and highly attractive 19" instrument enclosure for mounting 3U subracks, chassis or front panels. Conforms to DIN 41494 & IEC 297-1. Stylish front and rear bezels are fitted to the aluminium case body. Clip-on trims at the front and rear hide the assembly screws giving a very professional appearance. All case panels fitted with M4 threaded pillars for earth connection.

The case is supplied with a rear panel, two ABS side handles and four ABS non-slip feet. Ventilation slots are provided in the base and rear panel. Internal chassis runners support the 19" equipment.

Version With side handles

Supply Front bezel (x2), top cover, base and chassis assembly, rear panel, front trim (x2), rear trim (x2), trim clips (x8), ABS side handle (x2), ABS feet (x4), non-slip feet inserts (x4), M3 x 6 mm (x2), M3 x 8 mm (x12), M4 x 16 mm (x8), M4 x 12 mm (x6), M6 caged nuts (x4), M6 x 16 mm (x4) and grey plastic cup washer (x4). Supplied assembled.

Close

M6619345

TECHNOMET 19'' 3Ux400mm
product added to your list
Aluminium
Light grey RAL 7035
155.6x540x400mm
M6619444 TECHNOMET 19'' 4Ux400mm

M6619444

TECHNOMET 19'' 4Ux400mm Modern and highly attractive 19" instrument enclosure for mounting 4U subracks, chassis or front panels. Conforms to DIN 41494 & IEC 297-1. Stylish front and rear bezels are fitted to the aluminium case body. Clip-on trims at the front and rear hide the assembly screws giving a very professional appearance. All case panels fitted with M4 threaded pillars for earth connection.

The case is supplied with a rear panel, two ABS side handles and four ABS non-slip feet. Ventilation slots are provided in the base and rear panel. Internal chassis runners support the 19" equipment.

Version With side handles

Supply Front bezel (x2), top cover, base and chassis assembly, rear panel, front trim (x2), rear trim (x2), trim clips (x8), ABS side handle (x2), ABS feet (x4), non-slip feet inserts (x4), M3 x 6 mm (x2), M3 x 8 mm (x12), M4 x 16 mm (x8), M4 x 12 mm (x6), M6 caged nuts (x4), M6 x 16 mm (x4) and black plastic cup washer (x4). Supplied assembled.

Close

M6619444

TECHNOMET 19'' 4Ux400mm
product added to your list
Aluminium
Anthracite RAL 7016
200x540x400mm
M6619445 TECHNOMET 19'' 4Ux400mm

M6619445

TECHNOMET 19'' 4Ux400mm Modern and highly attractive 19" instrument enclosure for mounting 4U subracks, chassis or front panels. Conforms to DIN 41494 & IEC 297-1. Stylish front and rear bezels are fitted to the aluminium case body. Clip-on trims at the front and rear hide the assembly screws giving a very professional appearance. All case panels fitted with M4 threaded pillars for earth connection.

The case is supplied with a rear panel, two ABS side handles and four ABS non-slip feet. Ventilation slots are provided in the base and rear panel. Internal chassis runners support the 19" equipment.

Version With side handles

Supply Front bezel (x2), top cover, base and chassis assembly, rear panel, front trim (x2), rear trim (x2), trim clips (x8), ABS side handle (x2), ABS feet (x4), non-slip feet inserts (x4), M3 x 6 mm (x2), M3 x 8 mm (x12), M4 x 16 mm (x8), M4 x 12 mm (x6), M6 caged nuts (x4), M6 x 16 mm (x4) and grey plastic cup washer (x4). Supplied assembled.

Close

M6619445

TECHNOMET 19'' 4Ux400mm
product added to your list
Aluminium
Light grey RAL 7035
200x540x400mm
M6619644 TECHNOMET 19'' 6Ux400mm

M6619644

TECHNOMET 19'' 6Ux400mm Modern and highly attractive 19" instrument enclosure for mounting 6U subracks, chassis or front panels. Conforms to DIN 41494 & IEC 297-1. Stylish front and rear bezels are fitted to the aluminium case body. Clip-on trims at the front and rear hide the assembly screws giving a very professional appearance. All case panels fitted with M4 threaded pillars for earth connection.

The case is supplied with a rear panel, two ABS side handles and four ABS non-slip feet. Ventilation slots are provided in the base and rear panel. Internal chassis runners support the 19" equipment.

Version With side handles

Supply Front bezel (x2), top cover, base and chassis assembly, rear panel, front trim (x2), rear trim (x2), trim clips (x8), ABS side handle (x2), ABS feet (x4), non-slip feet inserts (x4), M3 x 6 mm (x2), M3 x 8 mm (x16), M4 x 16 mm (x8), M4 x 12 mm (x6), M6 caged nuts (x4), M6 x 16 mm (x4) and black plastic cup washer (x4). Supplied assembled.

Close

M6619644

TECHNOMET 19'' 6Ux400mm
product added to your list
Aluminium
Anthracite RAL 7016
288.9x540x400mm
M6619645 TECHNOMET 19'' 6Ux400mm

M6619645

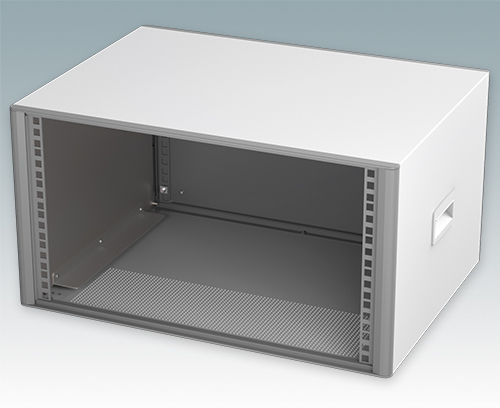

TECHNOMET 19'' 6Ux400mm Modern and highly attractive 19" instrument enclosure for mounting 6U subracks, chassis or front panels. Conforms to DIN 41494 & IEC 297-1. Stylish front and rear bezels are fitted to the aluminium case body. Clip-on trims at the front and rear hide the assembly screws giving a very professional appearance. All case panels fitted with M4 threaded pillars for earth connection.

The case is supplied with a rear panel, two ABS side handles and four ABS non-slip feet. Ventilation slots are provided in the base and rear panel. Internal chassis runners support the 19" equipment.

Version With side handles

Supply Front bezel (x2), top cover, base and chassis assembly, rear panel, front trim (x2), rear trim (x2), trim clips (x8), ABS side handle (x2), ABS feet (x4), non-slip feet inserts (x4), M3 x 6 mm (x2), M3 x 8 mm (x16), M4 x 16 mm (x8), M4 x 12 mm (x6), M6 caged nuts (x4), M6 x 16 mm (x4) and grey plastic cup washer (x4). Supplied assembled.

Close

M6619645

TECHNOMET 19'' 6Ux400mm
product added to your list
Aluminium
Light grey RAL 7035
288.9x540x400mm
M5900016 19" mounting kit

M5900016

19" mounting kit Mounting kit including all hardware for fitting a 19" rack case, subrack or front panel into a 19" rack.

Supply M6 caged nuts (x4), M6 x 16 mm screw (x4) and black plastic cup washer (x4).

Close

M5900016

19" mounting kit
product added to your list
Black RAL 9005
M6000035 19" mounting kit

M6000035

19" mounting kit Mounting kit including all hardware for fitting a 19" rack case, subrack or front panel into a 19" rack.

Supply M6 caged nuts (x4), M6 x 16 mm screw (x4) and light grey plastic cup washer (x4).

Close

M6000035

19" mounting kit
product added to your list
Light grey RAL 7035
M6019001 Front panel 3Ux19"

M6019001

Front panel 3Ux19" Anodised aluminium front panel according to 19" rack standard DIN 41494 and IEC 297-1.

Supply Front panel

Close

M6019001

Front panel 3Ux19"
product added to your list
Aluminium
Matt anodised
482.6x3x132.5mm
M6019010 Front panel 1Ux19"

M6019010

Front panel 1Ux19" Anodised aluminium front panel according to 19" rack standard DIN 41494 and IEC 297-1.

Supply Panel

Close

M6019010

Front panel 1Ux19"
product added to your list
Aluminium
Matt anodised
482.6x3x43.6mm
M6019011 Front panel 1Ux19" vented

M6019011

Front panel 1Ux19" vented Anodised aluminium front panel according to 19" rack standard DIN 41494 and IEC 297-1.

Version With ventilation slots

Supply Panel

Close

M6019011

Front panel 1Ux19" vented
product added to your list
Aluminium
Matt anodised
482.6x3x43.6mm
M6019040 Front panel 4Ux19"

M6019040

Front panel 4Ux19" Anodised aluminium front panel according to 19" rack standard DIN 41494 and IEC 297-1.

Supply Panel

Close

M6019040

Front panel 4Ux19"
product added to your list
Aluminium
Matt anodised
482.6x3x177mm
M6019060 Front panel 6Ux19"

M6019060

Front panel 6Ux19" Anodised aluminium front panel according to 19" rack standard DIN 41494 and IEC 297-1.

Supply Panel

Close

M6019060

Front panel 6Ux19"
product added to your list
Aluminium
Matt anodised
482.6x3x266mm
