Datamet wall mount enclosures for fast installation

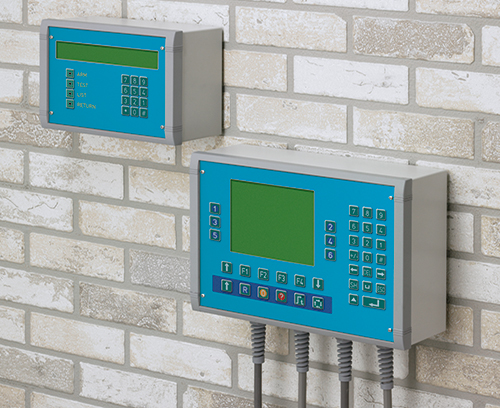

Datamet Wall Mount Enclosures

June 2010

Modern design in three standard sizes

METCASE the metal enclosures division of OKW has introduced the DATAMET range of aluminium wall mount enclosures.  These stylish and robust housings are designed for indoor electronic systems and have excellent access for mounting the equipment.   Typical applications will include control units, measurement systems, medical equipment, safety and security systems, communication devices, and machine controllers.

DATAMET enclosures consist of a diecast front bezel which locates onto the folded aluminium case body and rear panel. This three part assembly allows total access to the components and wiring during assembly and maintenance.   The rear panel includes mounting points for PCBs and chassis, plus three fixing holes for mounting the unit to a wall, or machine. The under side of the case body can be used for fixing cable glands or connectors. The cases are very easy to assemble, and there are no visible fixing screws on the case body or rear panel.

These aluminium enclosures are available in three standard sizes are offered: 250 x 180 x 116 mm (S), 350 x 250 x 116 mm (M) and 400 x 300 x 116 mm (L). The front bezel is painted window grey, RAL 7040 and the other parts are painted light grey, RAL 7035. The paint finish is textured polyester.

The attractive diecast front bezel has a recessed aperture for mounting an anodised aluminium front panel. The front panel can be easily adapted for membrane keypads, display modules, push-buttons, rotary controls etc.

DATAMET enclosures can be supplied with additional holes for push-buttons, connectors and displays, plus silk-screen printed legends and logos. The cases can also be made in non-standard sizes and painted in other colours.
