M6019315 INSTRUMET 19

M6019315

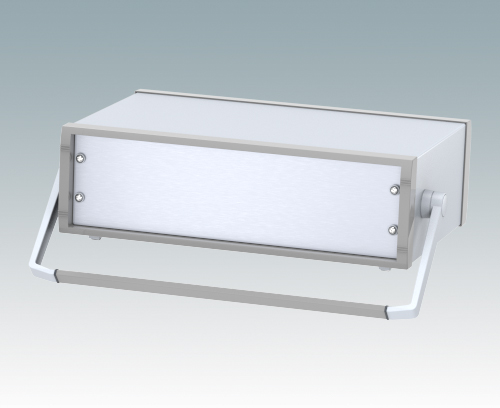

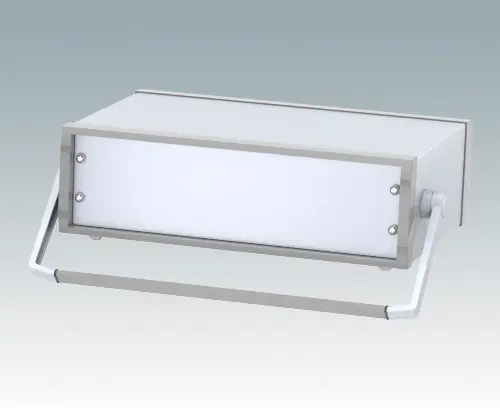

INSTRUMET 19" 3Ux350mm

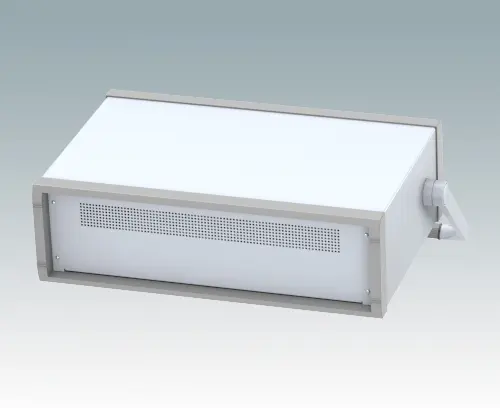

Stylish 19" instrument case for mounting 3U subracks, chassis or front panels. Portable version with metal carry handle/bail arm. Robust design with two die cast front bezels and fabricated case body. The base panel and rear panel are ventilated. Internal chassis runners support the equipment. Supplied with pre-fitted with ABS tilt feet.

Version

With handle/bail arm

Supply

Front bezel (x2), top cover, ventilated base and rear panel, chassis runner (x2), carry handle bar, ABS feet (x2), ABS tilt legs (x2), M4 x 10 mm (x8), M4 x 12 mm (x4), M3 x 8 mm (x10). Supplied fully assembled.

  • Components/Accessories

Accessory

M5900016 19" mounting kit

M5900016

19" mounting kit Mounting kit including all hardware for fitting a 19" rack case, subrack or front panel into a 19" rack.

Supply M6 caged nuts (x4), M6 x 16 mm screw (x4) and black plastic cup washer (x4).

Close

M5900016

19" mounting kit
product added to your list
Black RAL 9005
M6000035 19" mounting kit

M6000035

19" mounting kit Mounting kit including all hardware for fitting a 19" rack case, subrack or front panel into a 19" rack.

Supply M6 caged nuts (x4), M6 x 16 mm screw (x4) and light grey plastic cup washer (x4).

Close

M6000035

19" mounting kit
product added to your list
Light grey RAL 7035
M6019001 Front panel 3Ux19"

M6019001

Front panel 3Ux19" Anodised aluminium front panel according to 19" rack standard DIN 41494 and IEC 297-1.

Supply Front panel

Close

M6019001

Front panel 3Ux19"
product added to your list
Aluminium
Matt anodised
482.6x3x132.5mm
M6019010 Front panel 1Ux19"

M6019010

Front panel 1Ux19" Anodised aluminium front panel according to 19" rack standard DIN 41494 and IEC 297-1.

Supply Panel

Close

M6019010

Front panel 1Ux19"
product added to your list
Aluminium
Matt anodised
482.6x3x43.6mm
M6019011 Front panel 1Ux19" vented

M6019011

Front panel 1Ux19" vented Anodised aluminium front panel according to 19" rack standard DIN 41494 and IEC 297-1.

Version With ventilation slots

Supply Panel

Close

M6019011

Front panel 1Ux19" vented
product added to your list
Aluminium
Matt anodised
482.6x3x43.6mm
  • Technical Data
  • Drawings / Info
  • Purchasing Data
Material
Colour
Light grey/window grey RAL 7035/7040
Standards
IEC 297-1
REACH compliant
DIN 41494
RoHS compliant
Height
157 mm
Width
516 mm
Depth
350 mm
Height Unit
3 U

Catalogue Pages

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
4.5 kg
Customs tariff number
(METCASE product)
76169990
Country of manufacture
U.K.
