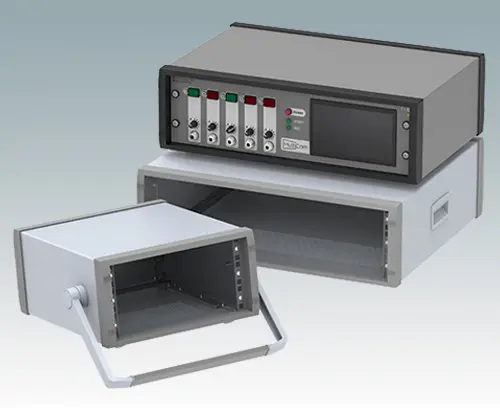

3U enclosures for 10.5" and 19" equipment
Customised versions to your exact requirements19" x 3U rackFor fitting 10.5" and 19" subracksInstrumet case componentsInternal chassis supportsModels with ABS side handlesModels with carry handle barAccessory 19" x 3U front panelSupplied with a ventilated rear panelSupplied ABS with tilt feet3U enclosures for 10.5" and 19" equipment

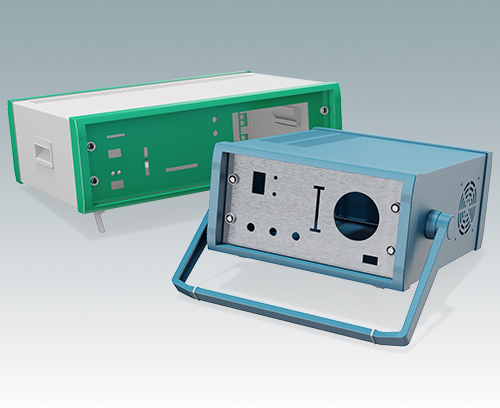

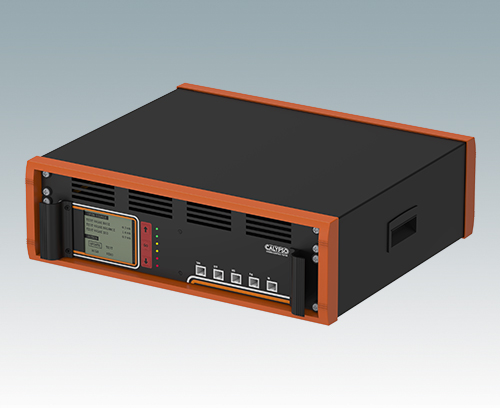

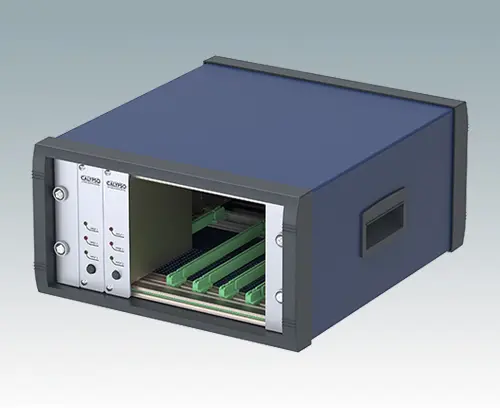

Customised versions to your exact requirements

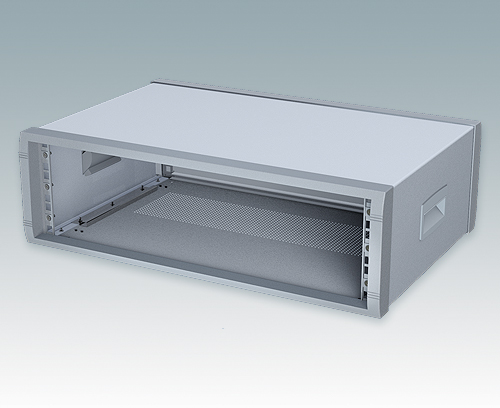

19" x 3U rack

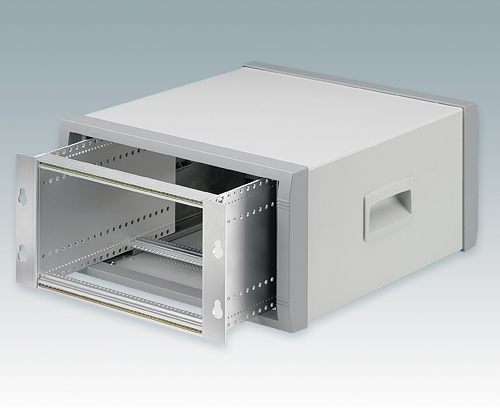

For fitting 10.5" and 19" subracks

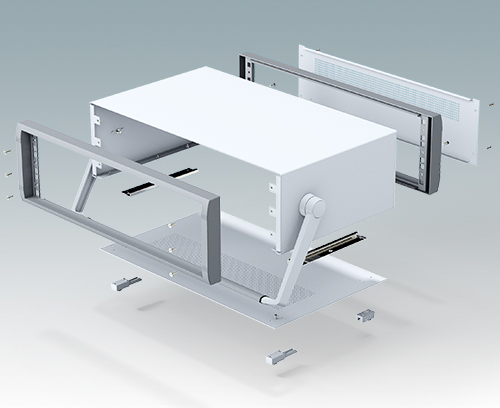

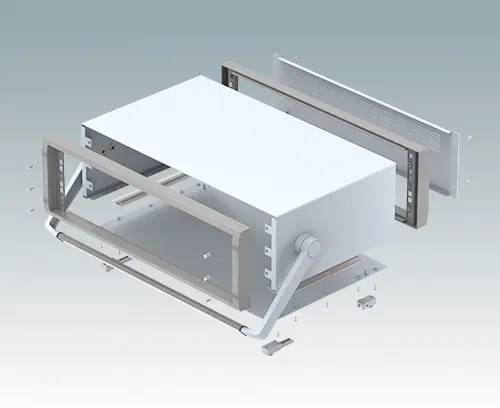

Instrumet case components

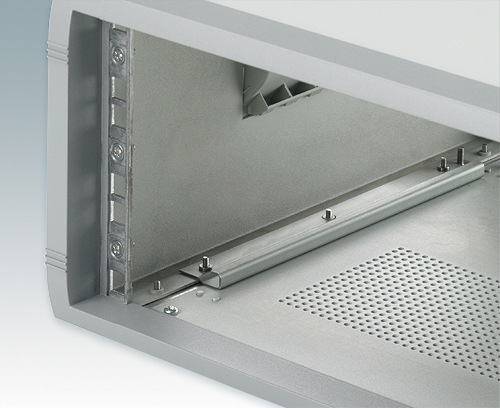

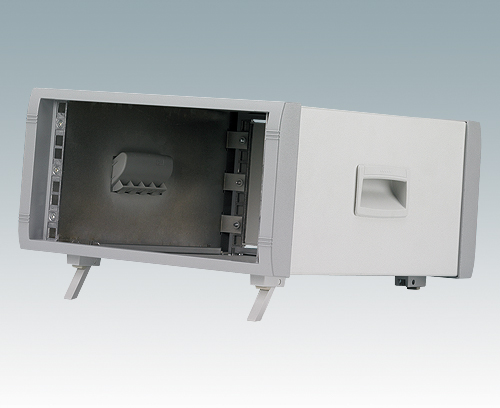

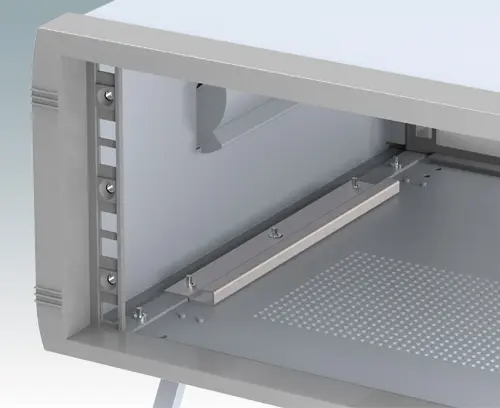

Internal chassis supports

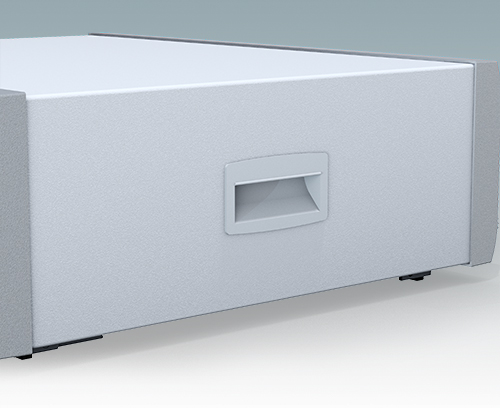

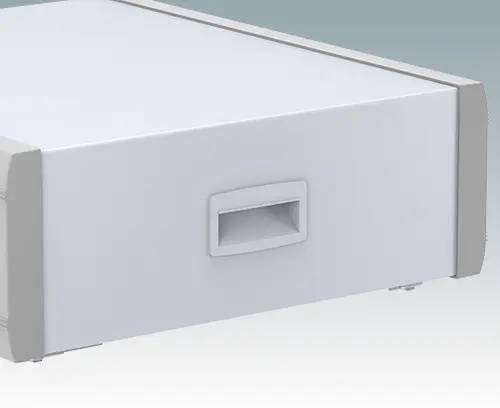

Models with ABS side handles

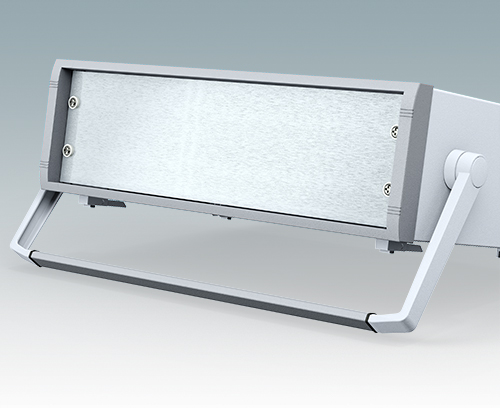

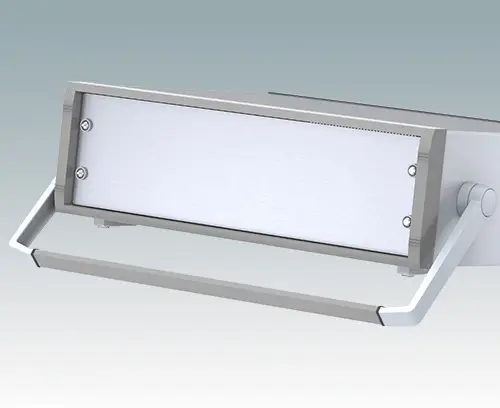

Models with carry handle bar

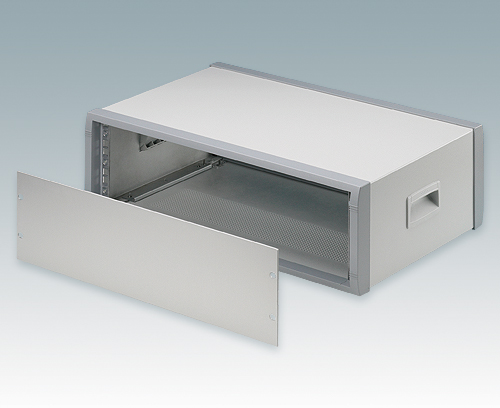

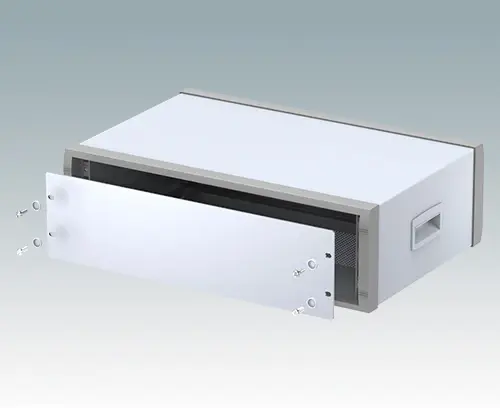

Accessory 19" x 3U front panel

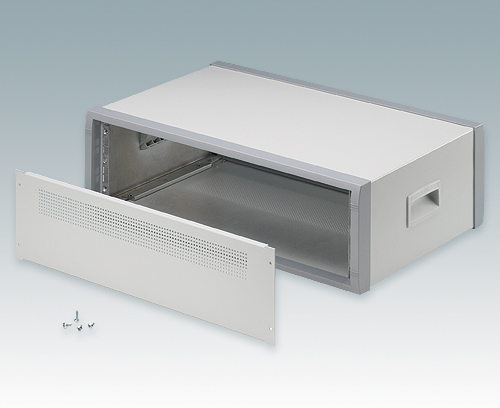

Supplied with a ventilated rear panel

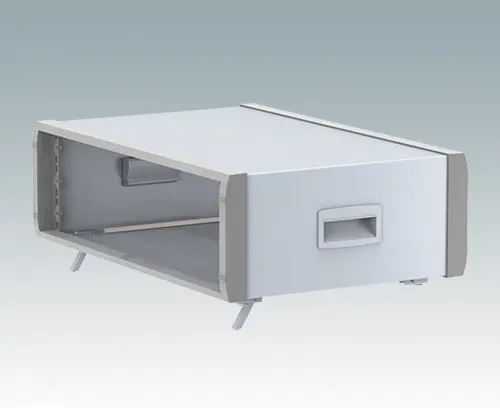

Supplied ABS with tilt feet

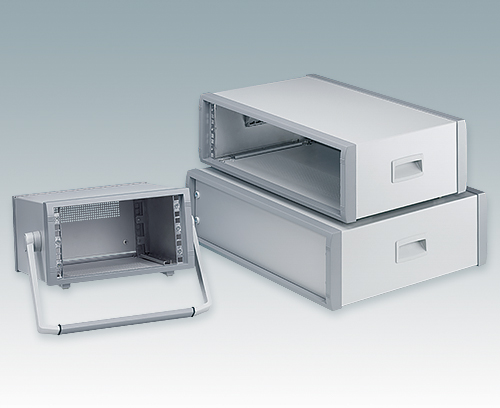

3U enclosures for 10.5" and 19" equipment

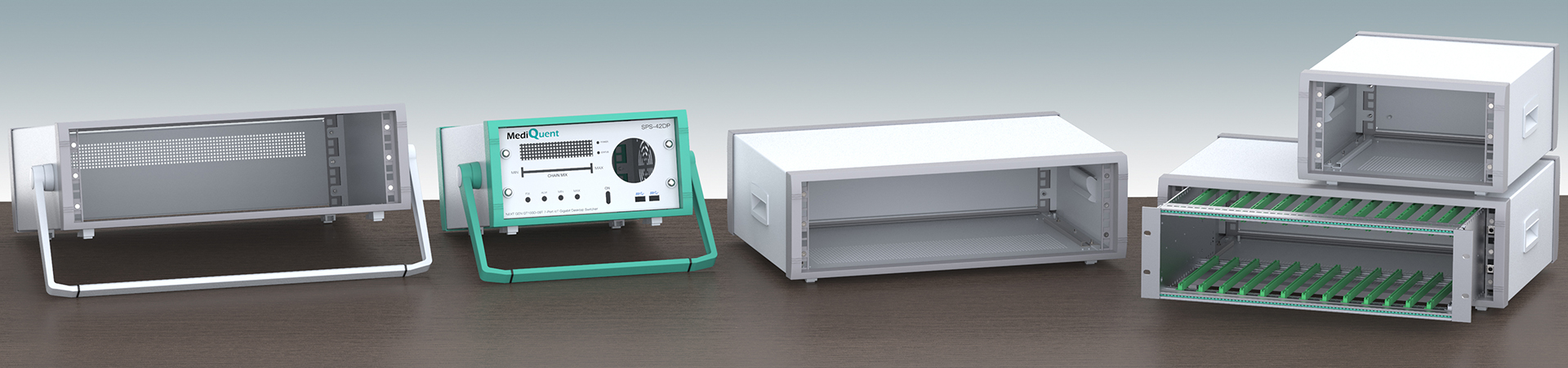

Instrumet 19"

Stylish 3U Instrument Enclosures

  • Modern 10.5" and 19" width rack mount cases
  • Robust yet lightweight aluminium construction
  • Conforms to DIN 41494 & IEC 297-1
  • Designed to accept standard 3U subracks, chassis and front panels
  • Attractive design with die cast front and rear bezels and fabricated case body
  • Standard models with ABS side handles
  • Portable models with metal tilt/swivel metal carry handle bar/bail arm
  • Supplied fully assembled and ready to use
  • Internal subrack/chassis support rails
  • Removable rear panel included
  • Ventilation holes in base and rear panel
  • Three M4 earth studs provided inside
  • Moulded ABS non-slip tilt feet included
  • Accessory anodised 10.5" & 19" front panels available.

Order your own fully customised version learn more here >>

Applications

19" subrack or chassis based electronics such as test and measurement equipment, networking and communications devices, industrial computers, sound and studio systems, laboratory instruments and industrial control systems.

  • Video



  • Browse Full List
  • Catalogue Documents
NEW PRODUCT
View

M6010305  Add to my list
INSTRUMET 10.5" 3Ux350mm

Aluminium
Light grey/window grey RAL 7035/7040
157x303x350mm

M6010315  Add to my list
INSTRUMET 10.5" 3Ux350mm

Aluminium
Light grey/window grey RAL 7035/7040
157x303x350mm

M6019305  Add to my list
INSTRUMET 19" 3Ux350mm

Aluminium
Light grey/window grey RAL 7035/7040
157x516x350mm

M6019315  Add to my list
INSTRUMET 19" 3Ux350mm

Aluminium
Light grey/window grey RAL 7035/7040
157x516x350mm

M6019325  Add to my list
INSTRUMET 19" 3Ux450mm

Aluminium
Light grey/window grey RAL 7035/7040
157x516x450mm

M6019335  Add to my list
INSTRUMET 19" 3Ux450mm

Aluminium
Light grey/window grey RAL 7035/7040
157x516x450mm

Accessory

M5900016  Add to my list
19" mounting kit

Black RAL 9005

M6000035  Add to my list
19" mounting kit

Light grey RAL 7035

M6010001  Add to my list
Front panel 3Ux10.5"

Aluminium
Matt anodised
269.2x3x132.5mm

M6019001  Add to my list
Front panel 3Ux19"

Aluminium
Matt anodised
482.6x3x132.5mm

M6019010  Add to my list
Front panel 1Ux19"

Aluminium
Matt anodised
482.6x3x43.6mm

M6019011  Add to my list
Front panel 1Ux19" vented

Aluminium
Matt anodised
482.6x3x43.6mm

M6019001

Anodised aluminium front panel according to 19" rack standard DIN 41494 and IEC 297-1.

Supply
Front panel

M6000035

Mounting kit including all hardware for fitting a 19" rack case, subrack or front panel into a 19" rack.

Supply
M6 caged nuts (x4), M6 x 16 mm screw (x4) and light grey plastic cup washer (x4).

M6019010

Anodised aluminium front panel according to 19" rack standard DIN 41494 and IEC 297-1.

Supply
Panel

M6019335

Stylish 19" instrument case for mounting 3U subracks, chassis or front panels. Portable version with metal carry handle/bail arm. Robust design with two die cast front bezels and fabricated case body. The base panel and rear panel are ventilated. Internal chassis runners support the equipment. Supplied with pre-fitted with ABS tilt feet.

Version
With handle/bail arm

Supply
Front bezel (x2), top cover, ventilated base and rear panel, chassis runner (x2), carry handle bar, ABS feet (x2), ABS tilt legs (x2), M4 x 10 mm (x8), M4 x 12 mm (x4), M3 x 8 mm (x10). Supplied fully assembled.

M6019011

Anodised aluminium front panel according to 19" rack standard DIN 41494 and IEC 297-1.

Version
With ventilation slots

Supply
Panel

M6010315

Stylish 10.5" instrument case for mounting 3U subracks, chassis or front panels. Portable version with metal handle/bail arm. Robust design with two die cast front bezels and fabricated case body. The base panel and rear panel are ventilated. Internal chassis runners support the equipment. Supplied with pre-fitted with ABS tilt feet.

Version
With handle/bail arm

Supply
Front bezel (x2), top cover, ventilated base and rear panel, chassis runner (x2), carry handle bar, ABS feet (x2), ABS tilt legs (x2), M4 x 10 mm (x8), M4 x 12 mm (x4), M3 x 8 mm (x10). Supplied fully assembled.

M6010305

Stylish 10.5" instrument case for mounting 3U subracks, chassis or front panels. Desktop version with ABS sides handles. Robust design with two die cast front bezels and fabricated case body. The base panel and rear panel are ventilated. Internal chassis runners support the equipment. Supplied with pre-fitted with ABS tilt feet.

Version
With side handles

Supply
Front bezel (x2), top cover, ventilated base and rear panel, chassis runner (x2), ABS side handles (x2), ABS feet (x2), ABS tilt legs (x2), M4 x 10 mm (x8), M4 x 12 mm (x4), M3 x 8 mm (x10). Supplied fully assembled.

M5900016

Mounting kit including all hardware for fitting a 19" rack case, subrack or front panel into a 19" rack.

Supply
M6 caged nuts (x4), M6 x 16 mm screw (x4) and black plastic cup washer (x4).

M6019305

Stylish 19" instrument case for mounting 3U subracks, chassis or front panels. Desktop version with ABS sides handles. Robust design with two die cast front bezels and fabricated case body. The base panel and rear panel are ventilated. Internal chassis runners support the equipment. Supplied with pre-fitted with ABS tilt feet.

Version
With side handles

Supply
Front bezel (x2), top cover, ventilated base and rear panel, chassis runner (x2), ABS side handles (x2), ABS feet (x2), ABS tilt legs (x2), M4 x 10 mm (x8), M4 x 12 mm (x4), M3 x 8 mm (x10). Supplied fully assembled.

M6010001

Anodised aluminium front panel according to 19" rack standard DIN 41494 and IEC 297-1.

Supply
Front panel

M6019325

Stylish 19" instrument case for mounting 3U subracks, chassis or front panels. Desktop version with ABS sides handles. Robust design with two die cast front bezels and fabricated case body. The base panel and rear panel are ventilated. Internal chassis runners support the equipment. Supplied with pre-fitted with ABS tilt feet.

Version
With side handles

Supply
Front bezel (x2), top cover, ventilated base and rear panel, chassis runner (x2), ABS side handles (x2), ABS feet (x2), ABS tilt legs (x2), M4 x 10 mm (x8), M4 x 12 mm (x4), M3 x 8 mm (x10). Supplied fully assembled.

M6019315

Stylish 19" instrument case for mounting 3U subracks, chassis or front panels. Portable version with metal carry handle/bail arm. Robust design with two die cast front bezels and fabricated case body. The base panel and rear panel are ventilated. Internal chassis runners support the equipment. Supplied with pre-fitted with ABS tilt feet.

Version
With handle/bail arm

Supply
Front bezel (x2), top cover, ventilated base and rear panel, chassis runner (x2), carry handle bar, ABS feet (x2), ABS tilt legs (x2), M4 x 10 mm (x8), M4 x 12 mm (x4), M3 x 8 mm (x10). Supplied fully assembled.
