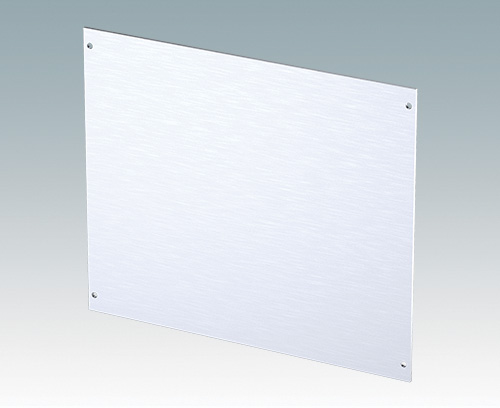

M7000700 Front Panel A – C218

M7000700

Front Panel A – C218

Anodised front panel for enclosure version C218.

Supply

Front panel (fixings supplied with the cases).

  • To be used for
M7023002 TECHNOMET-CONTROL C218V

M7023002

TECHNOMET-CONTROL C218V

Modern and highly attractive aluminium instrument enclosure for fitting displays, touch screens and HMI electronics. VESA MIS-D 100 mounting points are provided on the rear panel for fitting the unit to a standard VESA control arm or mounting bracket. Stylish front and rear diecast bezels are fitted to the case body. Clip-on trims at the front and rear hide all the assembly screws, giving a very professional appearance. The base panel on the underside provides space for cable entry. M3 PCB mounting pillars are provided inside. The assembly extrusions also have M3 mounting holes and guide rails for fitting internal plates. M4 earth studs are fitted to all parts; some studs can also be used with retaining straps to hold the front/rear panels during maintenance. Front panels are sold separately. Accessories include a wall mounting kit, a pole mounting bracket and an internal mounting plate.

COMPATIBLE DISPLAYS

SIEMENS: KTP400, MTP400
TURCK: TX705, TX805
BEIJER: X2 base 5 v2, X2 Pro 4

Version With VESA mount

Supply Front bezel (x2), top cover, base, assembly extrusion (x4), rear panel, front trim (x4), trim clips (x8), M3 x 6 mm (x6), M3 x 8 mm (x8), M4 x 16 mm (x8). Supplied assembled.

Close

M7023002

TECHNOMET-CONTROL C218V
product added to your basket
Aluminium
Traffic Grey A RAL 7042
230x180x95mm
M7023006 TECHNOMET-CONTROL C218V

M7023006

TECHNOMET-CONTROL C218V

Modern and highly attractive aluminium instrument enclosure for fitting displays, touch screens and HMI electronics. VESA MIS-D 100 mounting points are provided on the rear panel for fitting the unit to a standard VESA control arm or mounting bracket. Stylish front and rear diecast bezels are fitted to the case body. Clip-on trims at the front and rear hide all the assembly screws, giving a very professional appearance. The base panel on the underside provides space for cable entry. M3 PCB mounting pillars are provided inside. The assembly extrusions also have M3 mounting holes and guide rails for fitting internal plates. M4 earth studs are fitted to all parts; some studs can also be used with retaining straps to hold the front/rear panels during maintenance. Front panels are sold separately. Accessories include a wall mounting kit, a pole mounting bracket and an internal mounting plate.

COMPATIBLE DISPLAYS

SIEMENS: KTP400, MTP400
TURCK: TX705, TX805
BEIJER: X2 base 5 v2, X2 Pro 4

Version With VESA mount

Supply Front bezel (x2), top cover, base, assembly extrusion (x4), rear panel, front trim (x4), trim clips (x8), M3 x 6 mm (x6), M3 x 8 mm (x8), M4 x 16 mm (x8). Supplied assembled.

Close

M7023006

TECHNOMET-CONTROL C218V
product added to your basket
Aluminium
Traffic white/traffic grey A RAL 9016/7042
230x180x95mm
