M5340105

UNIDESK M400 IP 54

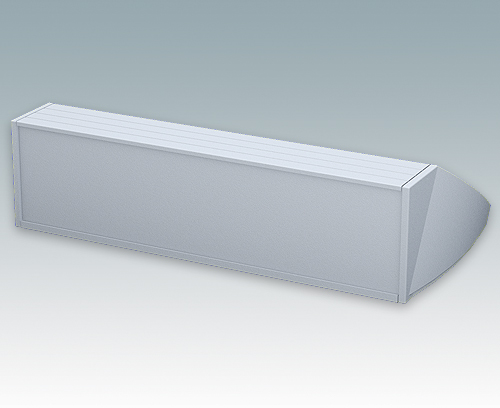

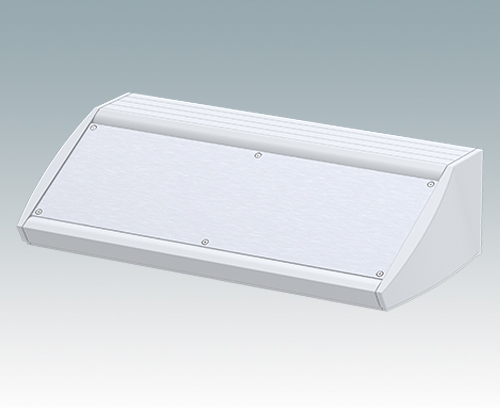

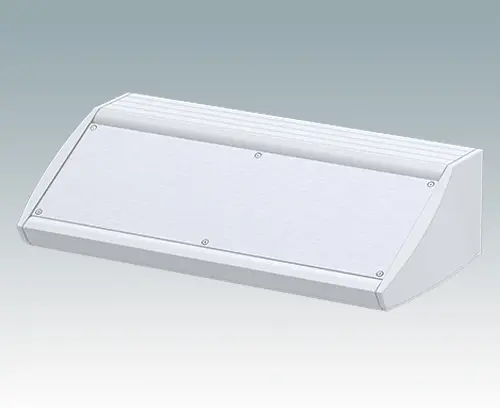

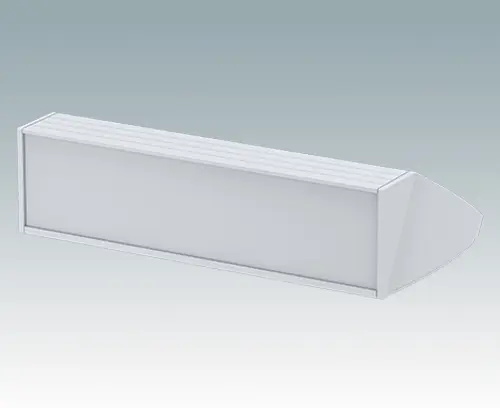

Ergonomic IP 54 rated sloping front enclosure for desktop or wall mounted electronics equipment. Pe-assembled aluminium case body with removable base panel. Front aperture for mounting the accessory front panels. Recessed rear face for mounting switches and power and data connections. To maintain IP 54 rating, fit PCB pillars M5600001, or your own plugs to the mounting holes in the base panel.

Version

With sealing gaskets (IP 54)

Supply

Enclosure body, base panel, 4 IP 54 gaskets, 4 non-slip feet and front panel fixing screws. Supplied assembled.

2D PDF Drawing
3D PDF View
3D/2D download

Generate Your PDF Datasheet for M5340105

Please select the product details you would like to include in the PDF.

Add to my basket Add to my basket Add to my basket
product added to your basket
continue or open your product basket

Accessory

M5301504 Front panel M400

M5301504

Front panel M400 Anodised aluminium front panel for UNIDESK M400 cases

Supply Panel (fixing screws supplied with cases).

M5301504

Front panel M400
product added to your basket

Matt anodised
370x2x123mm
M5302214 Wall mount kit M400

M5302214

Wall mount kit M400 Wall mounting kit for UNIDESK M400 cases. The two extrusion profiles fit into grooves in the rear or underside of the case. This allows the UNIDESK to be mounting vertically or horizontally on a wall or other surface. The profiles have optional fixing holes to allow for easier adjustment when mounting.

Supply 2 anodised extrusion profiles

M5302214

Wall mount kit M400
product added to your basket

Matt anodised
M5600001 PCB mounting kit

M5600001

PCB mounting kit Kit of ten M3 plastic PCB mounting pillars which can be positioned anywhere in the enclosure. Pillar height 10 mm. Fits to Ø3.2 mm hole in the case panel. Supplied with M3 fixing screws to secure to base panel.

If PCB or mounting plate fixing screws are required please see our screw kit M5600010.

Supply 10 Nylon PCB pillars and 10 M3 x 6 mm countersink fixing screws.

M5600001

PCB mounting kit
product added to your basket

Black RAL 9005
M5600010 PCB/Panel Fixing Screws, M3

M5600010

PCB/Panel Fixing Screws, M3

Pack of 100 M3 x 6 mm pan head pozi drive screws. Used for fitting PCBs and mounting plates to the threaded standoffs in our standard enclosures: TECHNOMET, MINIMET

Also suitable for use in combination with M5600001 PCB Mounting Kit, to secure PCBs to the plastic mounting pillars. Fixing points are provided in the following enclosures for this kit: COMBIMET 19", VERSAMET 19", UNIMET 19", UNIDESK, UNIMET, UNIMET-PLUS, DATAMET

These screws can also be used to replace the standard slotted case assembly screws supplied with our UNICASE enclosures — if pozi drive screws are preferred.

Additionally, this screw pack may be useful if your enclosure has been customised with M3 threaded inserts and pillars.

Supply 100 M3 x 6 mm pan head fixing screws (pozi drive PZ1).

M5600010

PCB/Panel Fixing Screws, M3
product added to your basket

Zinc coated
6mm
Material

Protection class
Colour
Light grey RAL 7035
Standards
REACH compliant
RoHS compliant
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Width
400 mm
Depth
200 mm
Height
102 mm
PCB length, base
147 mm
PCB width, base
345 mm

Catalogue Pages

Assembly Instructions (Group)

Drawings

3D Models

3D PDF View (Open in Acrobat Reader)

Weight/1 part
2 kg
Customs tariff number
(METCASE product)
76169990
Country of manufacture
UK

View our customising options and don't forget to request a quotation!
